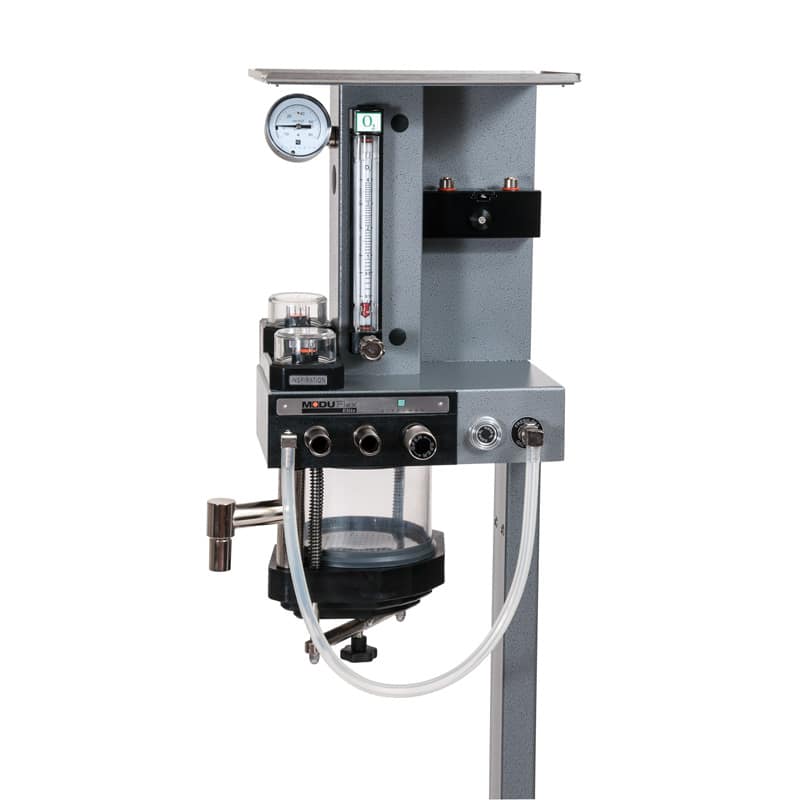

Moduflex Elite Veterinary Anesthesia Machine

Name: Moduflex Elite Veterinary Anesthesia Machine - Dispomed
SKU: 975-0510-000
Availability: InStock

Veterinary anesthesia machine for rebreathing and small animal applications.

Its compact size and base shape, combined with its large castors, provide excellent mobility and stability.

We have also adapted the Elite to the MRI room. Follow this link to find more about the Elite Model certified MRI Conditional.

Add to quote

SKU: 975-0510-000

Moduflex Elite Veterinary Anesthesia Machine

Standard features

0.1 to 4 LPM O₂ flowmeter (up to 2 flowmeters can be installed).
Rotary float and large scale for easy readability.
Recessed flush valve to prevent accidental activation.
Quick connect fresh gas outlet for easy and secure switching between breathing circuits.
SELECTATEC^TM compatibility manifold for easy and quick installation of vaporizer
Condensation trap to prevent water build-up in sodalime. Easy and efficient gas sealing.
Momentary closed feature incorporated into pop-off valve.
Standard CO₂ absorber
Convenient anesthesia monitor shelf.
5 year warranty.

Included with the Moduflex Elite

Y Patient Circuit
One 2 liter Rebreathing Bag
One 3 liter Rebreathing Bag
Fresh gas tube
krytox grease
Evacuation tube (150cm/5′)

Certified

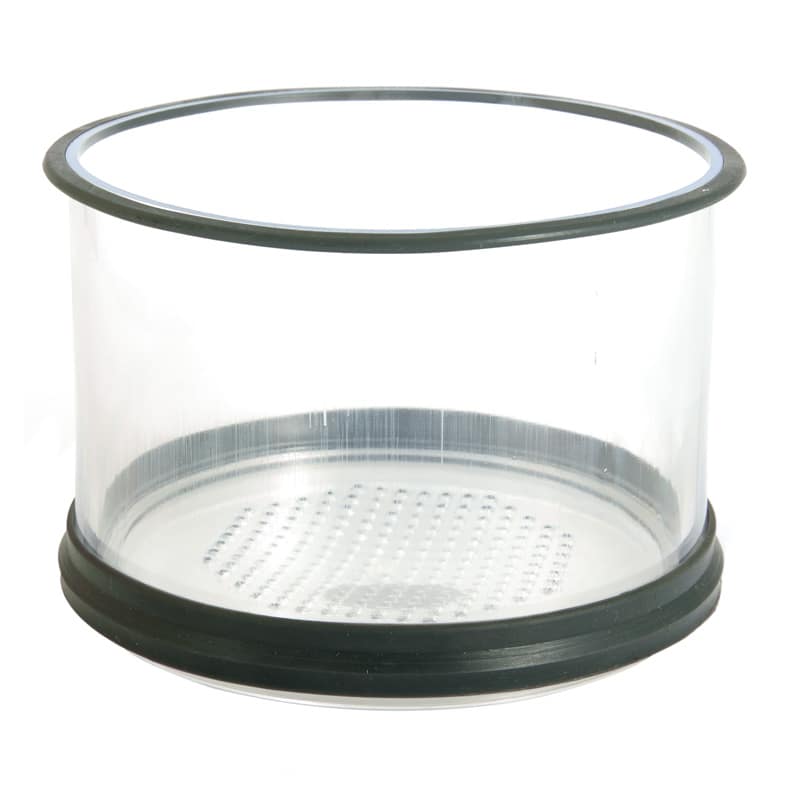

Condensation base

integrated into the sodalime canister, eliminates moisture and prevents the sodasorb from solidifying due to the accumulation of condensation, therefore avoiding an increase in breathing resistance.

Optional features

Optional Colours

Soft
Clay

Glacier
Mist

Sage
Green

Golden
Honey

Blush
Coral

Vintage
Pink

Lavender
Breeze

Rock
Grey

Ebony
Black

Italian
White

How and When to Replace Soda Lime on Veterinary Anesthesia Machines

Short video to explain how and when to replace soda lime on veterinary anesthesia machines.

Verify your anesthesia machine before each procedure

Learn about a simple and easy method to verify your veterinary anesthesia machine before each procedure. Our technician will show you, step by step, how to make sure your machine is in working order. Following these easy steps will reduce the risks for your staff and your patients as well as help you to foresee possible breakages of your anesthesia machine.

How to fill and drain keyfill type vaporizers

Do you have questions about how to fill or empty your keyfill vaporizer? Watch this video and get useful tips from our expert on how to fill your TEC-3, TEC-4 and TEC-5 vaporizer.

Product Dimensions

Length	21"	53.3 cm
Width	19.50"	49.5 cm
Height	53"	134.6 cm
Weight	57 lbs	25.9 kg

Shipping Dimensions

Length	71.12"	180.6 cm
Width	68.58"	174.2 cm
Height	53.34"	135.5 cm
Weight	32.72 lbs	14.8 kg
